PaperBanana: Automating Academic Illustration for AI Scientists

PaperBanana: Automating Academic lustration for AI Scientists

Dawei Zhu1 2 *, Rui Meng2, Yale Song2, Xiyu Wei1, Sujian ${\mathbf{Li}}^1$ , Tomas Pfister2 and Jinsung Yoon2

1Peking University, 2Google Cloud AI Research

https://dwzhu-pku.github.io/PaperBanana/

Despite rapid advances in autonomous AI scientists powered by language models, generating publicationready illustrations remains a labor-intensive bottleneck in the research workflow. To lift this burden, we introduce PaperBanana, an agentic framework for automated generation of publication-ready academic illustrations. Powered by state-of-the-art VLMs and image generation models, PaperBanana orchestrates specialized agents to retrieve references, plan content and style, render images, and iteratively refine via self-critique. To rigorously evaluate our framework, we introduce PaperBananaBench, comprising 292 test cases for methodology diagrams curated from NeurIPS 2025 publications, covering diverse research domains and illustration styles. Comprehensive experiments demonstrate that PaperBanana consistently outperforms leading baselines in faithfulness, conciseness, readability, and aesthetics. We further show that our method effectively extends to the generation of high-quality statistical plots. Collectively, PaperBanana paves the way for the automated generation of publication-ready illustrations.

Methodology Diagrams

Statistical Plots

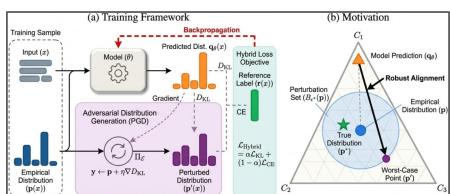

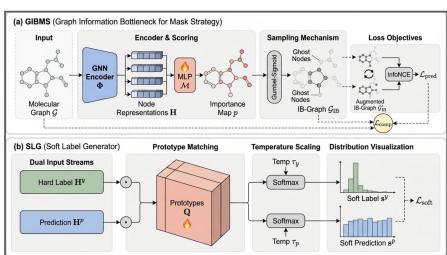

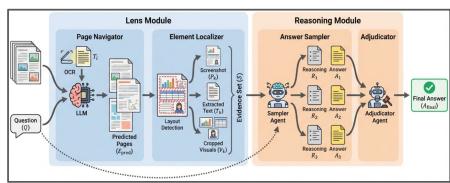

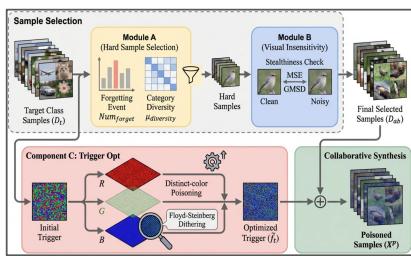

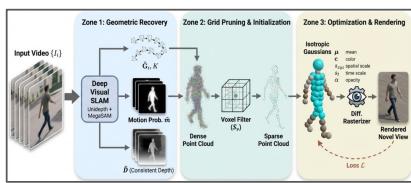

Figure 1 | Examples of methodology diagrams and statistical plots generated by PaperBanana, which show the potential of automating the generation of academic illustrations.

1. Introduction

Autonomous scientific discovery is a long-standing pursuit of artificial general intelligence (Ghahramani, 2015; Langley, 1987, 2024; Schmidhuber, 2010). With the rapid evolution of Large Language

Models (LLMs) (Anthropic, 2025; Comanici et al., 2025; Liu et al., 2024; OpenAI, 2025b; Yang et al., 2025a), autonomous AI Scientists have demonstrated the potential to automate many facets of the research lifecycle, such as literature review, idea generation, and experiment iteration (Gottweis et al., 2025; Lu et al., 2024; Luo et al., 2025). Yet scientific discoveries achieve their full value only through effective communication. Despite their proficiency in textual analysis and code execution, current autonomous AI scientists struggle to visually communicate discoveries, especially for generating illustrations (diagrams and plots) that adhere to the rigorous standards of academic manuscripts.

Among these illustration tasks, generating methodology diagrams represents a significant challenge, demanding both content fidelity and visual aesthetics. Prior endeavors for diagram generation have predominantly adopted the code-based paradigm, leveraging TikZ (Belouadi and Eger, 2024; Belouadi et al., 2025), Python-PPTX (Zheng et al., 2025), or SVG to programmatically synthesize diagrams. While effective for structured content, these methods can encounter expressiveness limitations when attempting to produce the intricate visual elements – such as specialized icons and custom shapes – that are increasingly common in modern AI publications. Conversely, although recent image generation models (Deepmind, 2025; OpenAI, 2025a; Team et al., 2025; Wu et al., 2025a) have demonstrated advanced instruction-following capabilities and high-quality visual outputs, consistently generating academic illustrations that meet scholarly standards remains a difficult task (Zuo et al., 2025). Specialized expertise required for professional illustration tools often constrains researchers’ ability to freely express complex ideas, forcing them to invest substantial manual effort into crafting figures. This creates a significant bottleneck in the effective visual communication of scientific discoveries.

In this paper, we introduce PaperBanana, an agentic framework designed to bridge this gap by automating the production of high-quality academic illustrations. Given a methodology description and diagram caption as input, PaperBanana orchestrates specialized agents powered by state-ofthe-art VLMs and image generation models (e.g. Gemini-3-Pro and Nano-Banana-Pro) to retrieve reference examples, devise detailed plans for content and style, render images, and iteratively refine via self-critique. This reference-driven collaborative workflow allows the system to effectively master the logical composition and stylistic norms required for publication-ready illustrations. Beyond methodology diagrams, our framework demonstrates significant versatility by extending to statistical plots, offering a comprehensive solution for scientific visualization.

To rigorously evaluate our framework and address the absence of dedicated benchmarks for automated academic illustration, we introduce PaperBananaBench, a comprehensive benchmark for methodology diagram generation. The benchmark comprises 292 test cases and 292 reference cases curated from NeurIPS 2025 publications, spanning diverse research topics and illustration styles. To assess generation quality, we employ a VLM-as-a-Judge approach for reference-based scoring against human illustrations across four dimensions: faithfulness, conciseness, readability, and aesthetics, with reliability verified through correlation with human judgments.

Comprehensive experiments on our benchmark demonstrate the effectiveness of PaperBanana. Our method consistently outperforms leading baselines across all four evaluation dimensions— faithfulness $(+2.8\%)$ , conciseness $(+37.2\%)$ , readability $(+12.9\%)$ , and aesthetics $(+6.6\%)$ —as well as the aggregated overall score $(+17.0\%)$ for diagram generation. We further show that our method also seamlessly extends to statistical plots. Collectively, our method paves the way for automating the generation of academic illustrations (Examples shown in Figure 1). As a demonstration of its capability, figures marked with $\Im$ in this manuscript were entirely generated using PaperBanana. Additionally, we discuss intriguing settings including using our framework to enhance existing humancreated illustrations and using image generation models for statistical plot generation. To sum up, our contributions are:

• We propose PaperBanana, a fully automated agentic framework that orchestrates specialized agents to generate publication-ready academic illustrations.
• We construct PaperBananaBench to assess the quality of academic illustrations, particularly methodology diagrams.
• Comprehensive experiments show that our workflow significantly outperforms leading baselines, showing promise for automating the generation of academic illustrations.

2. Task Formulation

We formalize the task of automated academic illustration generation as learning a mapping from a source context and a communicative intent to a visual representation. Let ?? denote the source context containing the essential information, and ?? denote the communicative intent that specifies the scope and focus of the desired illustration. The goal is to generate an image ?? that faithfully visualizes $S$ while fulfilling the communicative intent $C$ , formulated as:

$$I=f(S,C).\text{\hspace{1em}(1)}$$

To further guide the mapping function, the input can be optionally augmented by a set of $N$ reference examples $\mathcal{E}=\{E_n{\}}_{n=1}^N$ . Each example $E_n$ serves as a ground-truth demonstration, defined as a tuple $E_n=\left(S_n,C_n,I_n\right)$ , where $I_n$ is the reference illustration corresponding to the context $S_n$ and communicative intent $C_n$ . Integrating this, the unified task formulation becomes:

$$I=f(S,C,\mathcal{E}),\text{\hspace{1em}(2)}$$

where $\epsilon$ defaults to ∅ when no examples are used (i.e., zero-shot generation).

Among various types of academic illustrations, this paper primarily focuses on the automated generation of methodology diagrams, which requires interpreting complex technical concepts and logical flows from textual descriptions into high-fidelity, visually pleasing illustrations. In this setting, the source context ?? is the textual description of the method (e.g., methodology sections), and the communicative intent ?? is the figure caption specifying the scope and focus (e.g., “Overview of our framework”).

3. Methodology

In this section, we present the architecture of PaperBanana, a reference-driven agentic framework for automated academic illustration. As illustrated in Figure 2, PaperBanana orchestrates a collaborative team of five specialized agents—Retriever, Planner, Stylist, Visualizer, and Critic—to transform raw scientific content into publication-quality diagrams and plots. (See Appendix G for prompts)

Retriever Agent. Given the source context ?? and the communicative intent ??, the Retriever Agent identifies $N$ most relevant examples $\mathcal{E}=\{E_n{\}}_{n=1}^N\subset \mathcal{R}$ from the fixed reference set $\mathcal{R}$ to guide the downstream agents. As defined in Section 2, each example $E_i\in \mathcal{R}$ is a triplet $(S_i,C_i,I_i)$ . To leverage the reasoning capabilities of VLMs, we adopt a generative retrieval approach where the VLM performs selection over candidate metadata:

$$\mathcal{E}={\mathrm{VLM}}_{\text{R e t}}(S,C,{\left\{\left(S_i,C_i\right)\right\}}_{E_i\in \mathcal{R}})\text{\hspace{1em}(3)}$$

Specifically, the VLM is instructed to rank candidates by matching both research domain (e.g., Agent & Reasoning) and diagram type (e.g., pipeline, architecture), with visual structure being prioritized over topic similarity. By explicitly reasoned selection of reference illustrations $I_i$ whose corresponding

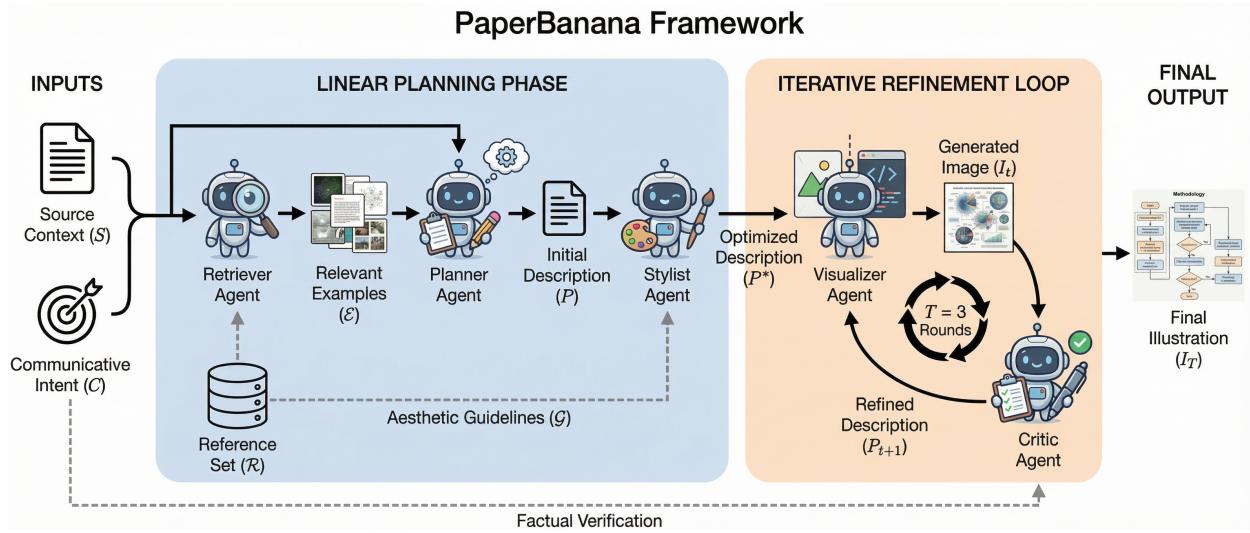

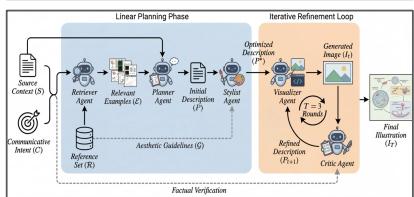

Figure 2 | [Generated by $\Im$ , textual description to reproduce this diagram is presented in Appendix E.] Overview of our PaperBanana framework. Given the source context and communicative intent, we first apply a Linear Planning Phase to retrieve relevant reference examples and synthesize a stylistically optimized description. We then use an Iterative Refinement Loop (consisting of Visualizer and Critic Agents) to transform the description into visual output and conduct multi-round refinements to produce the final academic illustration.

contexts $(S_i,C_i)$ best match the current requirements, the Retriever provides a concrete foundation for both structural logic and visual style.

Planner Agent. The Planner Agent serves as the cognitive core of the system. It takes the source context ??, communicative intent ??, and retrieved examples E as inputs. By performing in-context learning from the demonstrations in E, the Planner translates the unstructured or structured data in ?? into a comprehensive and detailed textual description $P$ of the target illustration:

$$P={\mathrm{VLM}}_{\text{p l a n}}(S,C,\{(S_i,C_i,I_i){\}}_{E_i\in \mathcal{E}}).\text{\hspace{1em}(4)}$$

Stylist Agent. To ensure the output adheres to the aesthetic standards of modern academic manuscripts, the Stylist Agent acts as a design consultant. A primary challenge lies in defining a comprehensive “academic style,” as manual definitions are often incomplete. To address this, the Stylist traverses the entire reference collection $\mathcal{R}$ to automatically synthesize an Aesthetic Guideline $\mathcal{G}$ covering key dimensions such as color palette, shapes and containers, lines and arrows, layout and composition, and typography and icons (see Appendix F for the summarized guideline and implementation details). Armed with this guideline, the Stylist refines each initial description $P$ into a stylistically optimized version $P^{\ast }$ :

$$P^{\ast }={\mathrm{VLM}}_{\text{s t y l e}}(P,\mathcal{G}).\text{\hspace{1em}(5)}$$

This ensures that the final illustration is not only accurate but also visually professional.

Visualizer Agent. After receiving the stylistically optimized description $P^{\ast }$ , the Visualizer Agent collaborates with the Critic Agent to render academic illustrations and iteratively refine their quality. The Visualizer Agent leverages an image generation model to transform textual descriptions into visual output. In each iteration ??, given a description $P_t$ , the Visualizer generates:

$$I_t=Image-Gen\left(P_t\right),\text{\hspace{1em}(6)}$$

where the initial description $P_0$ is set to $P^{\ast }$ .

Critic Agent. The Critic Agent forms a closed-loop refinement mechanism with the Visualizer by closely examining the generated image $I_t$ and providing refined description $P_{t+1}$ to the Visualizer. Upon receiving the generated image $I_t$ at iteration ??, the Critic inspects it against the original source context $(S,C)$ to identify factual misalignments, visual glitches, or areas for improvement. It then provides targeted feedback and produces a refined description $P_{t+1}$ that addresses the identified issues:

$$P_{t+1}={\mathrm{VLM}}_{\text{c r i t i c}}\left(I_t,S,C,P_t\right).\text{\hspace{1em}(7)}$$

This revised description is then fed back to the Visualizer for regeneration. The Visualizer-Critic loop iterates for $T=3$ rounds, with the final output being $I=I_T$ . This iterative refinement process ensures that the final illustration meets the high standards required for academic dissemination.

Extension to Statistical Plots. The framework extends to statistical plots by adjusting the Visualizer and Critic agents. For numerical precision, the Visualizer converts the description $P_t$ into executable Python Matplotlib code: $I_t={\mathsf{VLM}}_{\mathrm{code}}(P_t)$ . The Critic evaluates the rendered plot and generates a refined description $P_{t+1}$ addressing inaccuracies or imperfections: $P_{t+1}={\mathrm{VLM}}_{\mathrm{critic}}(I_t,S,C,P_t)$ . The same $T=3$ round iterative refinement process applies. While we prioritize this code-based approach for accuracy, we also explore direct image generation in Section 6. See Appendix G.2 for adjusted prompts.

4. Benchmark Construction

The lack of benchmarks hinders rigorous evaluation of automated diagram generation. We address this with PaperBananaBench, a dedicated benchmark curated from NeurIPS 2025 methodology diagrams, capturing the sophisticated aesthetics and diverse logical compositions of modern AI papers. We detail the construction pipeline and evaluation protocol below; dataset statistics are in Figure 3.

4.1. Data Curation

Collection & Parsing. We begin by randomly sampling 2,000 papers from the 5,275 publications at NeurIPS 2025 and retrieving their PDF files. Subsequently, we utilize the MinerU toolkit (Niu et al., 2025) to parse these documents, extracting the text of the methodology sections, and all the diagrams and their captions in the paper.

Filtering. We then apply a filtering stage to ensure data quality. First, we discard papers without methodology diagrams, yielding 1,359 valid candidates. Second, we restrict the aspect ratio $(\mathbf{w}:h)$ to [1.5, 2.5]. Ratios below 1.5 are excluded as methodology diagrams typically require wider landscape layouts for logical flows, while ratios exceeding 2.5 are unsupported by current image generation models. Including such outliers would introduce bias in side-byside evaluations by revealing the human origin of candidates. This yields 610 valid candidates, each a tuple $(S,I,C)$ , where ?? is the methodology description, $I$ is the methodology diagram, and ?? is the caption.

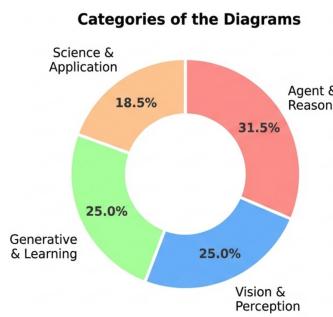

Figure 3 | [Generated by ] Statistics of the test set of PaperBananaBench (totaling 292 samples). The average length of source context / figure caption is 3,020.1 / 70.4 words.

Categorization. To facilitate future analysis of generating different types of diagrams, we further

categorize the diagrams into four classes, based on visual topology and content: Agent & Reasoning, Vision & Perception, Generative & Learning, and Science & Applications (see Appendix C for definitions). Gemini-3-Pro is used to perform the categorization, assigning samples with hybrid elements to their predominant category.

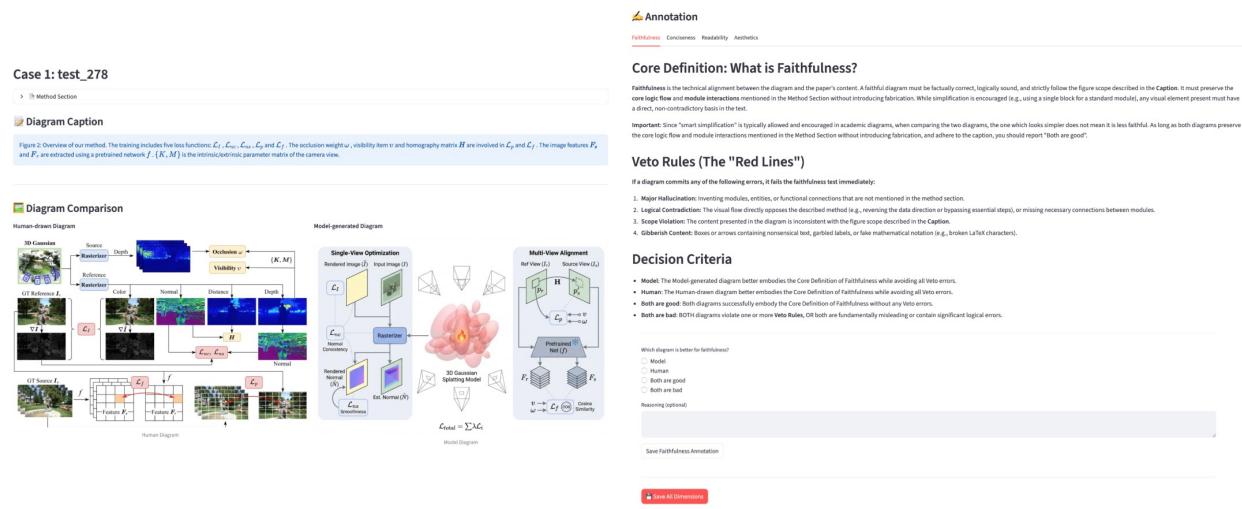

Human Curation. Finally, we conduct a human curation phase to guarantee the integrity and quality of the dataset. Annotators are tasked with verifying and correcting the extracted methodology descriptions and captions, validating the correctness of diagram categorizations, and filtering out diagrams of insufficient visual quality (e.g., overly simplistic, cluttered, or abstract designs). Following this rigorous process, 584 valid samples remain. We randomly partition these into two equal subsets: a test set $\left(N=292\right)$ for evaluation and a reference set $\left(N=292\right)$ ) to facilitate retrieval-augmented in-context learning.

4.2. Evaluation Protocol

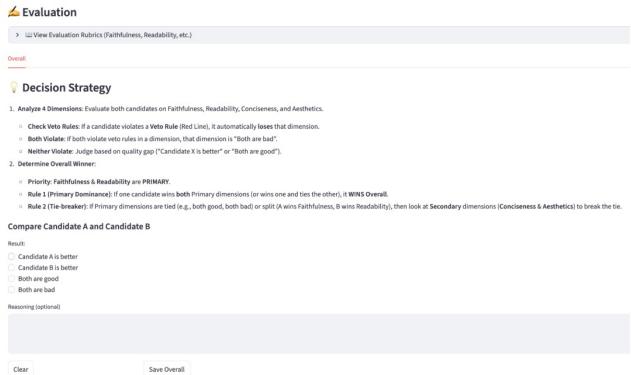

We utilize VLM-as-a-Judge to assess the quality of methodology diagrams and statistical plots. Given the inherent subjectivity in evaluating visual design, we employ a referenced comparison approach where the judge compares the model-generated diagram against the human-drawn diagram to determine which better satisfies each evaluation criterion.

Evaluation Dimensions. Inspired by Quispel et al. (2018), we evaluate diagrams on two perspectives. Detailed rubrics for each dimension are provided in Appendix H.

• Content (Faithfulness & Conciseness): Faithfulness ensures alignment with the source context (methodology description) and communicative intent (caption), while Conciseness requires focusing on core information without visual clutter.
• Presentation (Readability & Aesthetics): Readability demands intelligible layouts, legible text, no excessive crossing lines, etc. Aesthetics evaluates adherence to the stylistic norms of academic manuscripts.

Referenced Scoring. For each dimension, the VLM judge compares the model-generated diagram against the human reference given the context and caption. It determines Model wins, Human wins, or Tie based on relative quality, which are then mapped to scores of 100, 0, and 50, respectively. To aggregate scores into an overall metric, we follow the design principle that information visualization must primarily “show the truth” (Mackinlay, 1986; Quispel et al., 2018; Tufte and Graves-Morris, 1983). We employ a hierarchical aggregation strategy, designating faithfulness and readability as primary dimensions, and conciseness and aesthetics as secondary. If primary dimensions yield a decisive winner (i.e., winning both, or winning one with a tie), this determines the overall winner. In case of a tie (e.g., each wins one, or both tie), we apply the same rule to the secondary dimensions. This hierarchical approach ensures that content fidelity and clarity take precedence over aesthetics and conciseness.

5. Experiments

5.1. Baseline Methods and Models

We compare PaperBanana against three baseline settings: (1) Vanilla, directly prompting the image generation model to generate diagrams based on the input context (methodology description and caption); (2) Few-shot, building upon the vanilla baseline by augmenting the prompt with 10 few-shot examples, where each example consists of a triplet (methodology description, caption, diagram) to enable in-context learning for the image generation model; (3) Paper2Any (Liu et al., 2025), an agentic

Table 1 | Main results on PaperBananaBench. Best score in each column is in bold.

Method	Faithfulness ↑	Conciseness ↑	Readability ↑	Aesthetic ↑	Overall ↑
Vanilla Settings
GPT-Image-1.5	4.5	37.5	30.0	37.0	11.5
Nano-Banana-Pro	43.0	43.5	38.5	65.5	43.2
Few-shot Nano-Banana-Pro	41.6	49.6	37.6	60.5	41.8
Agentic Frameworks
Paper2Any (w/ Nano-Banana-Pro)	6.5	44.0	20.5	40.0	8.5
PAPERBANANA (Ours)
w/ GPT-Image-1.5	16.0	65.0	33.0	56.0	19.0
w/ Nano-Banana-Pro	45.8	80.7	51.4	72.1	60.2
Human	50.0	50.0	50.0	50.0	50.0

framework that generates diagrams to present high-level ideas of the papers, which is the closest to our setting. For VLM backbone, we default to Gemini-3-Pro, while for image generation model, we experiment with Nano-Banana-Pro and GPT-Image-1.5. (See Appendix C for more implementation details.)

5.2. Evaluation Settings.

Evaluating the quality of generated diagrams demands strong visual perception and understanding capabilities, particularly for the Faithfulness dimension, which requires accurately identifying and interpreting subtle modules and connections. Hence, we employ Gemini-3-Pro as our VLM-based Judge. To validate its reliability, we randomly sampled 50 cases (25 from vanilla and 25 from our method) and conducted a two-fold validation process:

Inter-Model Agreement (Consistency). First, we verify that our evaluation protocol is robust and model-agnostic. We evaluated the agreement between our judge (Gemini-3-Pro) and other distinct VLMs (Gemini-3-Flash and GPT-5). Kendall’s tau correlations with Gemini-3-Flash across the four dimensions (Faithfulness, Conciseness, Readability, Aesthetic) and their aggregation are 0.51, 0.60, 0.45, 0.56, and 0.55, respectively; correlations with GPT-5 are 0.43, 0.47, 0.44, 0.42, and 0.45, respectively. This confirms the consistency of our protocol across different judge models1.

Human Alignment (Validity). Second, we verify that our VLM judge is a valid proxy for human evaluation. We tasked two human annotators to independently perform reference-based scoring on the same 50 samples using the same rubrics, followed by a discussion to reach consensus on conflicting cases. Kendall’s tau correlations between Gemini-3-Pro and human annotations are 0.43, 0.57, 0.45, 0.41, and 0.45, respectively. These strong correlations demonstrate that our VLM-based judge aligns well with human perception. (See Appendix B for more details.)

5.3. Main Results

Table 1 summarizes the performance of ours and baseline methods on PaperBananaBench. PaperBanana consistently outperforms leading baselines across all metrics. We attribute the poor performance of GPT-Image in both vanilla and agentic settings to its weaker instruction following and text rendering capabilities compared to Nano-Banana-Pro, which fails to meet the strict requirements

Table 2 | Ablation study on PaperBananaBench. The shaded row indicates the default setting of PaperBanana. We systematically ablate each agent component to assess its contribution. The $◯$ symbol denotes the Random Retriever which randomly selects 10 examples instead of performing semantic retrieval.

#	Module					Faithfulness ↑ Conciseness ↑ Readability ↑ Aesthetic ↑ Overall ↑
	Retriever	Planner	Stylist	Visualizer	Critic
①	✓	✓	✓	✓	3 iters	45.8	80.7	51.4	72.1	60.2
②	✓	✓	✓	✓	1 iter	38.3	75.2	50.6	68.9	51.8
③	✓	✓	✓	✓	-	30.7	79.2	47.0	72.1	45.6
④	✓	✓	-	✓	-	39.2	61.7	47.9	67.4	49.2
⑤	○	✓	-	✓	-	37.3	62.7	51.1	65.6	48.3
⑥	-	✓	-	✓	-	41.9	58.6	43.1	62.9	44.2

of academic illustration. Similarly, while Paper2Any also supports generating paper figures, it prioritizes the presentation of high-level ideas rather than the faithful depiction of specific methodological flows necessary for methodology diagrams. This objective mismatch leads to its underperformance in our evaluation setting.

In contrast, PaperBanana achieves comprehensive improvements over the Vanilla Nano-Banana-Pro baseline: Faithfulness $(+2.8\%)$ , Conciseness $(+37.2\%)$ , Readability $(+12.9\%)$ , and Aesthetics $(+6.6\%)$ , contributing to a $+17.0\%$ gain in the Overall score. Regarding performance across categories, Agent & Reasoning achieves the highest overall score $(69.9\%)$ , followed by Scientific & Application $(58.8\%)$ and Generative & Learning $(57.0\%)$ , while Vision & Perception scores the lowest $(52.1\%)$ . We also conducted a blind human evaluation on a subset of 50 cases to compare PaperBanana against vanilla Nano-Banana-Pro (See Appendix B for details). The average win / tie / loss rate of PaperBanana from 3 human judges is $72.7\%/20.7\%/6.6\%$ , respectively. This further validates that our agentic workflow shows promising improvements in automated methodology diagram generation. (See Appendix Figure 7 for case studies)

Despite the progress, we note that PaperBanana still underperforms the human reference in terms of faithfulness. We have included some failure analysis in Appendix Figure 10 to provide insights into the challenges.

5.4. Ablation Study

To understand the contribution of each agent component, we conduct an ablation study, with results presented in Table 2.

Impact of the Retriever Agent. We compare the semantic retriever with random and no-retriever baselines (rows $\stackrel{◯}{4}-\stackrel{◯}{6}$ in Table 2). Without reference examples as guidance, the no-retriever setting significantly underperforms in Conciseness, Readability, and Aesthetics, as the Planner defaults to verbose, exhaustive descriptions. Moreover, lacking exposure to academic diagram aesthetics, this setting produces visually less refined outputs. Interestingly, the random retriever achieves performance comparable to the semantic approach, suggesting that providing general structural and stylistic patterns is more critical than precise content matching.

Impact of the Stylist and Critic Agents. Comparing rows $\stackrel{◯}{3}$ and $\stackrel{◯}{4}$ shows that the Stylist boosts Conciseness $(+17.5\%)$ and Aesthetics $(+4.7\%)$ but lowers Faithfulness $(-8.5\%)$ , as visual polishing sometimes omits technical details. However, the Critic Agent (row $\stackrel{◯}{1}$ vs. $\stackrel{◯}{3}$ ) effectively bridges this

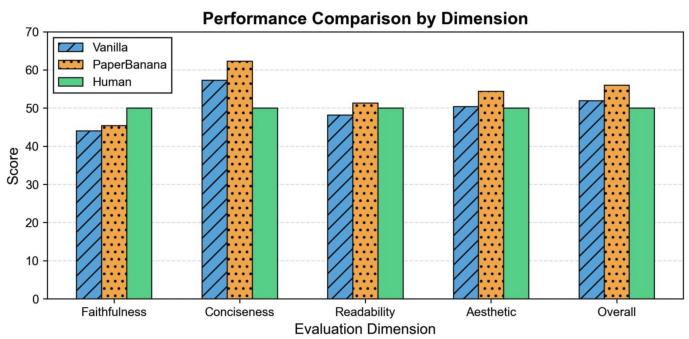

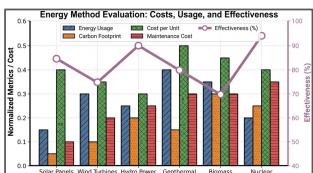

Figure 4 | [Generated by ] Vanilla Gemini-3-Pro vs. PaperBanana for statistical plots generation.

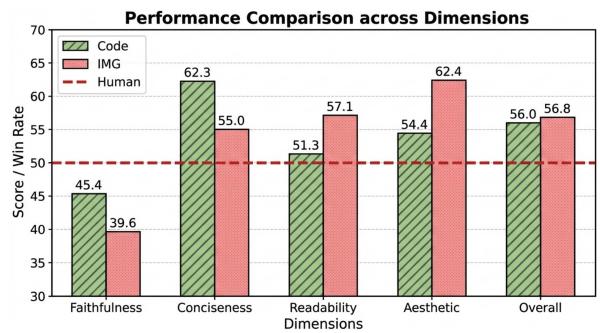

Figure 5 | [Generated by ] Coding vs. Image Generation for visualizing statistical plots.

gap, substantially recovering Faithfulness. Additional iterations further enhance all metrics, ensuring a balance between aesthetics and technical accuracy.

5.5. PaperBanana for Statistical Plots Generation.

PaperBanana operates by first synthesizing a detailed description of the target illustration, then visualizing it into an image. Unlike methodology diagrams that prioritize aesthetics and logical coherence, statistical plots demand rigorous numerical precision, making standard image generation models unsuitable. To address this, we demonstrate that by adopting executable code for visualization, PaperBanana seamlessly extends to statistical plot generation.

Testset Curation. Following the task formulation in Section 2, we assess PaperBanana’s capability to generate statistical plots from tabular data and brief visual descriptions. Since raw data of statistical plots is rarely available in academic manuscripts, we repurpose ChartMimic (Yang et al., 2025b), a dataset originally constructed for chart-to-code generation. This dataset primarily includes statistical plots from arXiv papers and Matplotlib galleries, paired with human-curated Python code. Leveraging Gemini-3-Pro, we extract the underlying tabular data from the code and synthesize a brief description for each plot. Following rigorous filtering and sampling (see Appendix D), we curate 240 test cases and 240 reference examples, stratified across seven plot categories—bar chart, line chart, tree & pie chart, scatter plot, heatmap, radar chart, and miscellaneous—and two complexity levels (easy and hard). For evaluation, we adhere to the protocol detailed in Section 4, with prompts specifically tailored to statistical plots.

Figure 4 compares PaperBanana with vanilla Gemini-3-Pro on our curated test set. Our method consistently outperforms the baseline across all dimensions, achieving gains of $+1.4\%$ , $+5.0\%$ , $+3.1\%$ , and $+4.0\%$ in Faithfulness, Conciseness, Readability, and Aesthetics, respectively, resulting in a $+4.1\%$ overall improvement. Notably, PaperBanana slightly surpasses human performance in Conciseness, Readability, and Aesthetics while remaining competitive in Faithfulness, showcasing its effectiveness for statistical plot.

6. Discussion

6.1. Enhancing Aesthetics of Human-Drawn Diagrams

Given the summarized aesthetic guidelines $\mathcal{G}$ , an intriguing question arises: can these guidelines serve to elevate the aesthetic quality of existing human-drawn diagrams? To explore this, we implement a streamlined pipeline where Gemini-3-Pro first formulates up to 10 actionable suggestions based on

the original diagram and $\mathcal{G}$ , which are then executed by Nano-Banana-Pro to refine the image. We evaluate the results using our referencebased protocol, comparing the refined output against the original human-drawn diagram. Across the 292 test cases, the refined diagrams achieved a win / tie / loss ratio of $56.2\%/6.8\%$ $/37.0\%$ in aesthetics against their original counterparts, showing that the summarized aesthetic guidelines can indeed serve to elevate the aesthetic quality of existing human-authored diagrams. An illustrative example is provided in Figure 6 2. More examples are provided in AppendixFigure 8.

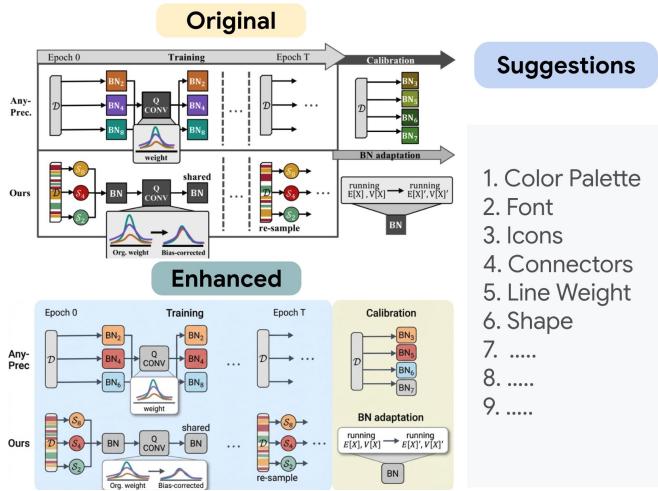

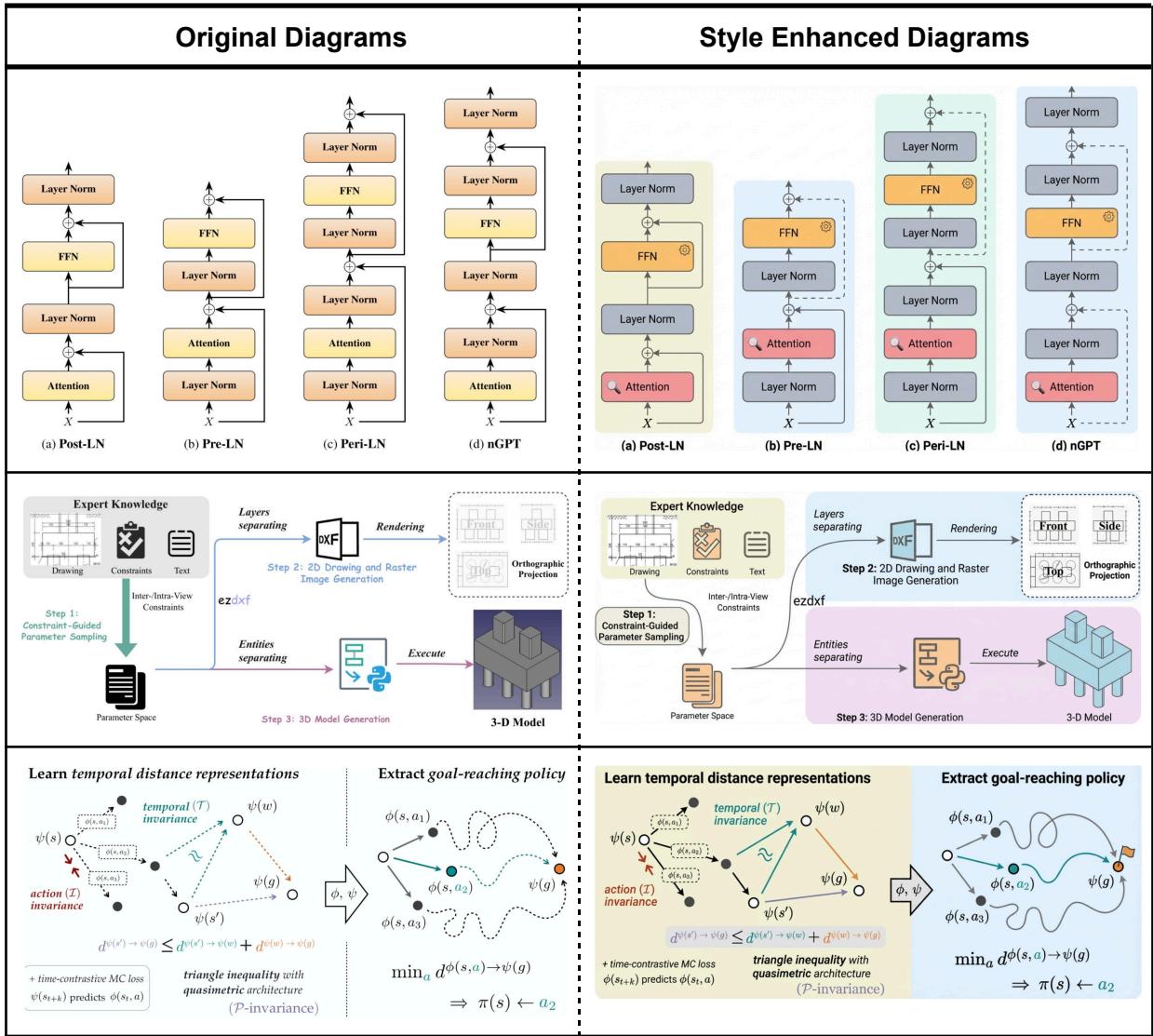

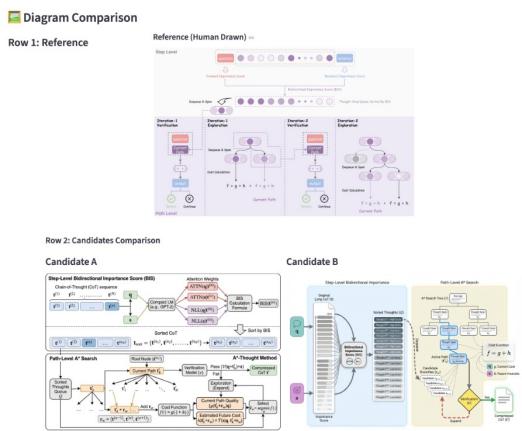

Figure 6 | Example of enhancing aesthetics of human-drawn diagrams

6.2. Coding vs Image Generation for Visualizing Statistical Plots

For statistical plots, code-based approaches have demonstrated remarkable efficacy, as evidenced by Figure 4 and prior studies (Chen et al., 2025; Goswami et al., 2025; Yang et al., 2024). Given the advanced fidelity and visual appeal of recent image generation models, we compare code-based (Gemini-3-Pro) and image-generation-based (Nano-Banana-Pro) approaches for the Visualizer agent in PaperBanana, as shown in Figure 5. Results reveal distinct trade-offs: image generation excels in presentation (Readability and Aesthetics) but underperforms in content fidelity (Faithfulness and Conciseness). Manual inspection shows that while image models faithfully render sparse plots, they struggle with dense or complex data, exhibiting numerical hallucinations or element repetition (Appendix Figure 9). Thus, hybridly using image generation for sparse visualizations and code for dense plots may offer the best balance.

7. Related Work

7.1. Automated Academic Diagram Generation.

Automated academic diagram generation remains a long-standing challenge (Rodriguez et al., 2023). Prior work primarily adopts code-based generation using TikZ (Belouadi and Eger, 2024; Belouadi et al., 2023, 2025; Zhang et al., 2025) or Python-PPT (Pang et al., 2025; Zheng et al., 2025) for programmatic synthesis. While effective for structured content, these approaches face expressiveness limitations in generating the intricate visual designs prevalent in modern AI publications.

Recent image generation models have achieved remarkable progress in synthesizing high-fidelity, visually sophisticated figures (Deepmind, 2025; OpenAI, 2025a; Tang et al., 2026; Team et al., 2025; Zuo et al., 2025), offering a promising alternative. Concurrent to our work, AutoFigure (Zhu et al., 2026) and AutoFigure-Edit (Lin et al., 2026) transforms scientific content into symbolic representations before rendering them as images using GPT-Image. In comparison, our method achieves broader generalizability through adaptive retrieval and academic-style transfer, with greater extensibility by supporting both methodology diagrams and statistical plots in a unified pipeline.

For evaluation benchmarks, quality assessment of auto-generated diagrams remains less explored. Most closely related to PaperBananaBench is SridBench (Chang et al., 2025), which evaluates

automated diagram generation from method sections and captions across computer science and natural science domains. We will report results once it is publicly available.

7.2. Coding-Based Data Visualization

While the inherent complexity of academic diagram generation has deterred pioneering research, visualizing statistical data has garnered extensive attention since the rise of language models. Early endeavors (Dibia and Demiralp, 2019) employed LSTM-based models to convert JSON data into Vega-Lite visualizations, followed by few-shot and zero-shot coding approaches (Dibia, 2023; Galimzyanov et al., 2025; Li et al., 2024; Tian et al., 2024) leveraging large-scale backbones such as ChatGPT (OpenAI, 2022). More recently, agentic frameworks have demonstrated remarkable progress in coding-based data visualization (Chen et al., 2025; Goswami et al., 2025; Seo et al., 2025; Yang et al., 2024), leveraging fundamental mechanisms such as test-time scaling (Snell et al., 2024) and self-reflection (Shinn et al., 2023). While this paper is more focused on automated generation of academic diagrams and plots, these agentic frameworks can be seamlessly integrated into our Visualizer Agent to enhance its capability in translating detailed descriptions of desired plots into robust Python code. Complementary to generation, recent efforts have also explored reversing plots back into their original code (Wu et al., 2025b; Yang et al., 2025b), challenging both the perception and coding capabilities of VLMs.

8. Conclusion

This paper introduces PaperBanana, an agentic framework designed to automate the generation of publication-ready academic illustrations. By orchestrating specialized agents—Retriever, Planner, Stylist, Visualizer, and Critic—our approach transforms scientific content into high-fidelity methodology diagrams and statistical plots. To facilitate rigorous evaluation, we presented PaperBananaBench, a comprehensive benchmark curated from top-tier AI conferences. Extensive experiments demonstrate that PaperBanana significantly outperforms existing baselines in faithfulness, conciseness, readability, and aesthetics, paving the way for AI scientists to autonomously communicate their discoveries with professional-grade visualizations.

9. Limitations and Future Directions

As a pioneering work, although PaperBanana achieves promising results, it inevitably faces certain limitations. This section will discuss these limitations in detail, and outline the corresponding future directions we envision.

Towards Editable Academic Illustrations. The most prominent limitation of PaperBanana lies in the raster nature of its output. Unlike vector graphics—which are preferred in academic contexts for their infinite scalability and precise detail preservation—raster images are inherently difficult to edit. While generating outputs at 4K resolution serves as a viable workaround to ensure high visual fidelity, it does not fundamentally resolve the challenge of post-generation modification. To address this, we envision three potential solutions catering to varying levels of editing needs. For minor visual adjustments, leveraging state-of-the-art image editing models, such as Nano-Banana-Pro, serves as the most direct approach. For more structural modifications, a reconstruction pipeline as exemplified by Paper2Any (Liu et al., 2025), Edit Banana (BIT-DataLab, 2025) and AutoFigure-Edit (Lin et al., 2026) can be adopted: employing OCR for text extraction and SAM3 for pattern segmentation, followed by reassembling these elements on presentation slides (e.g., via Python-PPTX). While currently facing challenges when handling complex backgrounds and intricate visual elements,

we anticipate that training specialized element extraction models will significantly enhance the robustness of this reconstruction. Finally, a more advanced direction involves developing a GUI Agent capable of autonomously operating professional vector design software (Huang et al., 2026; Sun et al., 2025), such as Adobe Illustrator. This would enable the direct generation of fully editable vector graphics, although it necessitates the agent to possess exceptional perception, planning and interaction capabilities.

The Trade-off between Style Standardization and Diversity. The second limitation lies in the trade-off between style standardization and diversity. While our unified style guide ensures rigid compliance with academic standards, it inevitably reduces the stylistic diversity of the output. Future work could explore more dynamic style adaptation mechanisms that allow for a broader range of artistic expressions and personalized aesthetic choices while maintaining professional rigor.

The Challenge of Fine-Grained Faithfulness. While PaperBanana excels in aesthetics, a performance gap in faithfulness compared to human experts remains. As shown in our failure analysis (Figure 10 in the Appendix), the most prevalent errors involve fine-grained connectivity, such as misaligned start/end points or incorrect arrow directions. These subtleties often escape the detection of current critic models, limiting the efficacy of self-correction. We posit that closing this gap primarily hinges on advancing the fine-grained visual perception capabilities of the foundation VLMs.

Advancing Evaluation Paradigms. Following existing practices, our evaluation adopts a referencebased VLM-as-a-Judge setup. Despite its effectiveness, we acknowledge that this evaluation paradigm still faces inherent challenges. First, regarding faithfulness, quantifying structural correctness remains challenging, as detecting subtle errors in connectivity and notation requires high-precision scrutiny. Future protocols could benefit from incorporating fine-grained, structure-based (Liang and You, 2025) or rubric-based (Huang et al., 2026; Li et al., 2025) metrics, which may offer higher accuracy despite their increased computational complexity. Second, for subjective dimensions such as aesthetics, we observe that textual prompting is often insufficient to fully align the VLM with human preferences. We envision that training customized reward models to bridge this alignment gap represents a crucial direction for future research.

Test-Time Scaling for Diverse Preferences. Currently, our framework produces a single output for each query. However, given the inherent stochasticity of generative models and the subjectivity of aesthetic preferences, a single result may not universally satisfy diverse user tastes. A natural extension is to implement test-time scaling by generating a spectrum of candidates with varying styles and compositions. This paradigm shifts the focus from single-shot generation to a generate-and-select workflow, enabling either human users or VLM-based preference models to select the illustration that best aligns with their specific requirements.

Extension to Broader Domains. Beyond academic illustrations, our framework establishes a generalizable paradigm: leveraging retrieval to instruct the model on what to generate (target diagram types) and employing automatic style summarization to teach it how to generate (stylistic norms). By effectively decoupling structural planning from aesthetic rendering, this reference-driven approach bypasses the need for expensive domain-specific fine-tuning. We believe this paradigm holds significant promise for other specialized domains requiring strict adherence to community standards, such as UI/UX design, patent drafting, and industrial schematics.
